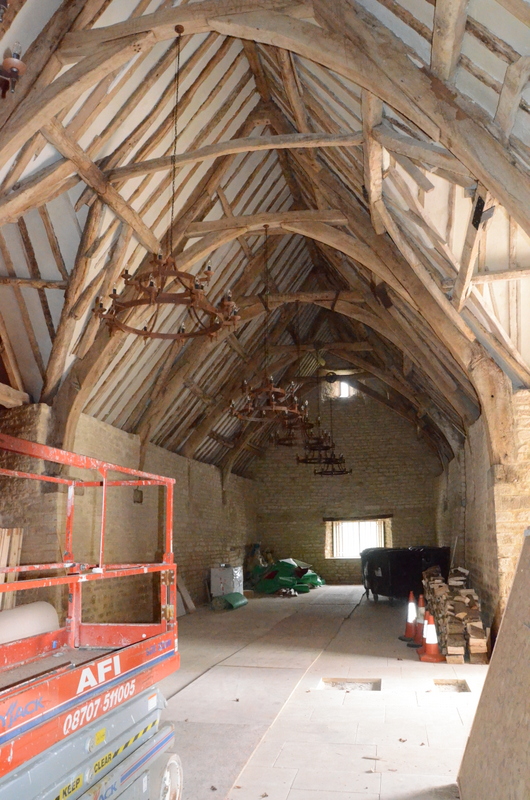

The magnificent cruciform stone tithe barn on which the following exravagant measures were lavished is largely C15th with a stone roof held by dramatic raised crucks.

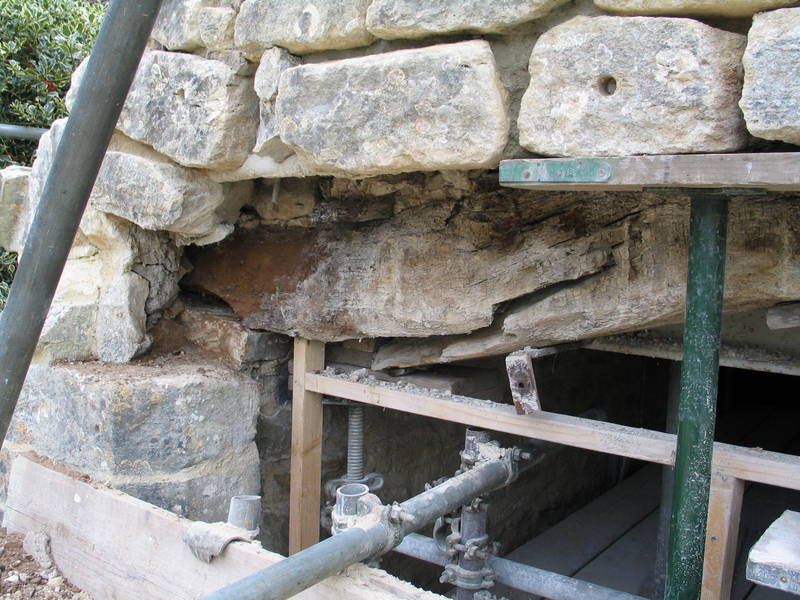

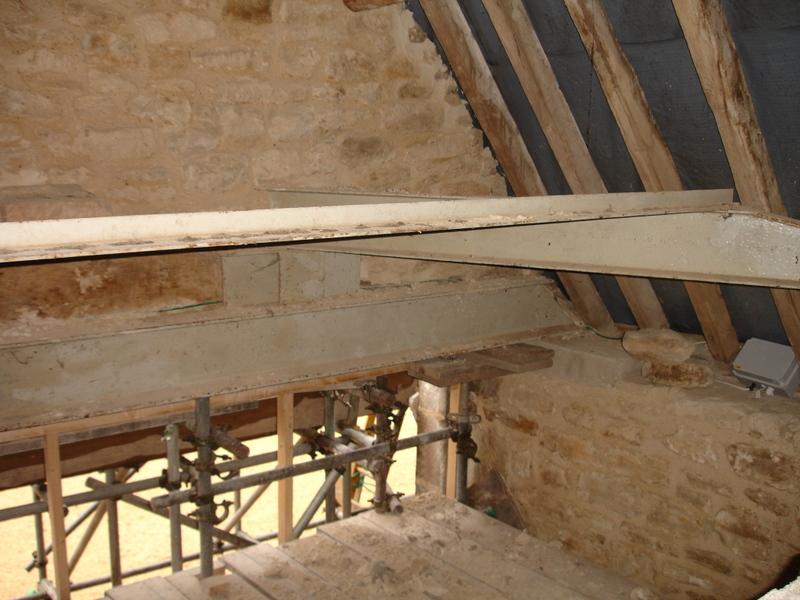

The lintel in question supports a stone gable above a pair of substantial twelve foot high doors opening to the threshing floor. The failed outer lintel, which was an Edwardian replacement, had been extensively tunelled by death watch beetle and its compressed rotten ends had led to extensive stone work and roof repairs despite the post war introduction of internal steel supports.









 4-St Cath's Barn April 2011







01-st. Catherine's Barn Lintel August 2009 1536x2048-1 28-09-2009 16-01-47



03-st. Catherine's Barn Lintel August 2009 1536x2048-1 28-08-2009 16-18-09. Catherine's Barn August 2009 2048x1536-9





1-st. Catherine's Barn August 2009 1536x2048

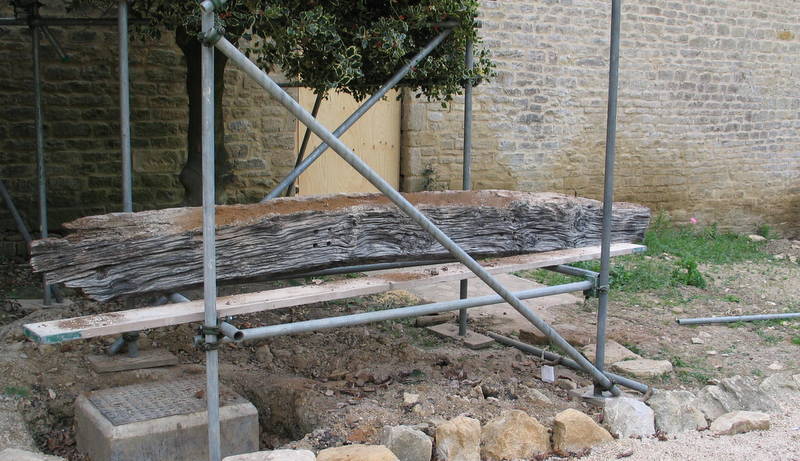

The 14ft  lintel was removed and taken to our workshop for extensive repairs.







02-barn lintel removed002

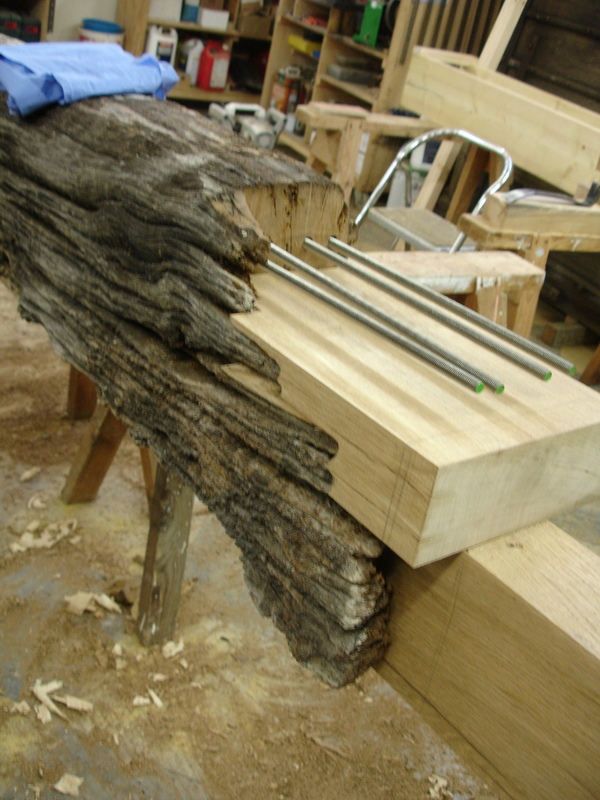

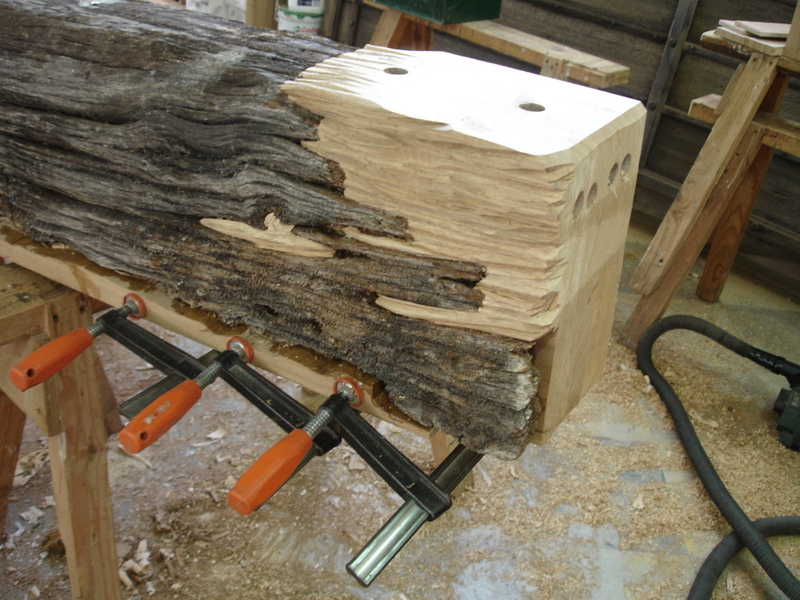

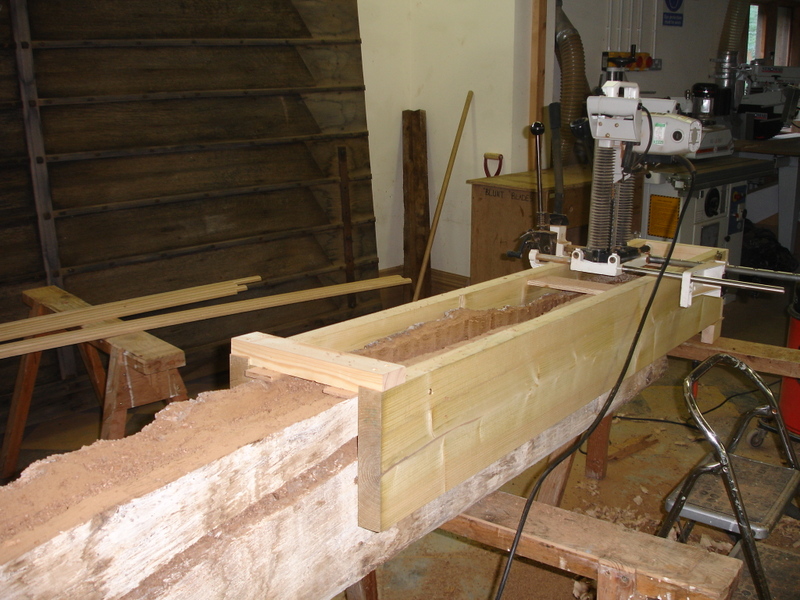

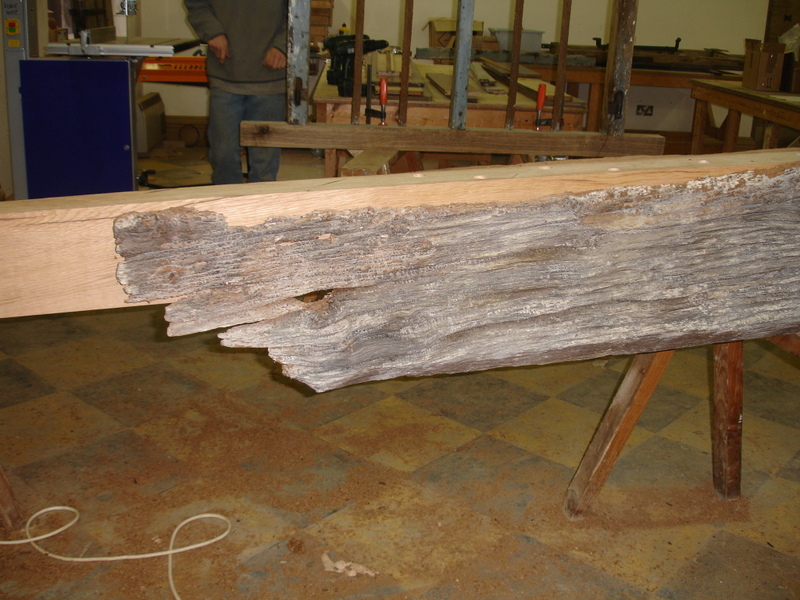

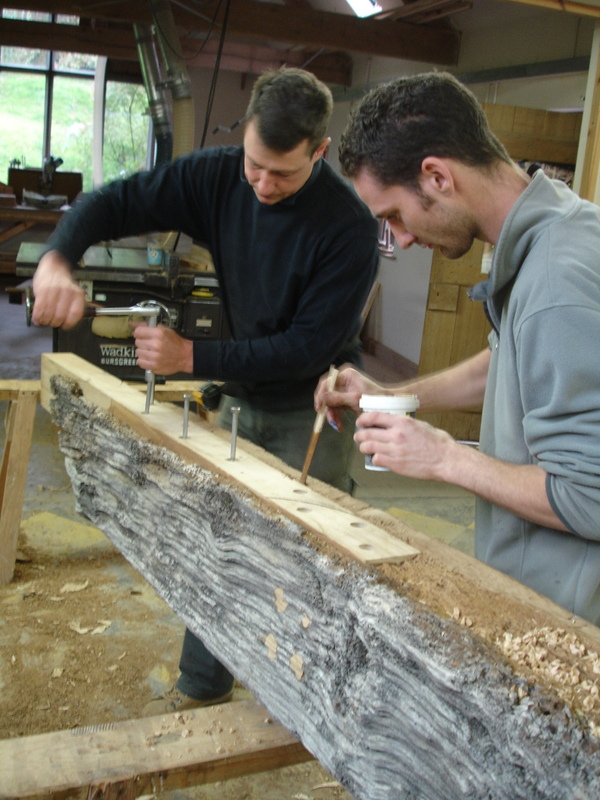

The friable heart of one end of the the lintel was cut out and replaced with a seasoned oak core that extended to give the full original length, and shorter extensions were fixed with glur and stainless steel threaded bars





06-st. Catherine's Barn Lintel August 2009 1536x2048-1 10-10-2009 08-50-26





08-st. Catherine's Barn Lintel August 2009 1536x2048-1 11-10-2009 09-19-18







09-st. Catherine's Barn Lintel August 2009 1536x2048-1 11-10-2009 17-00-37





07-st. Catherine's Barn Lintel August 2009 1536x2048-1 11-10-2009 15-10-21





10-st. Catherine's Barn Lintel August 2009 1536x2048-1 15-10-2009 14-34-31

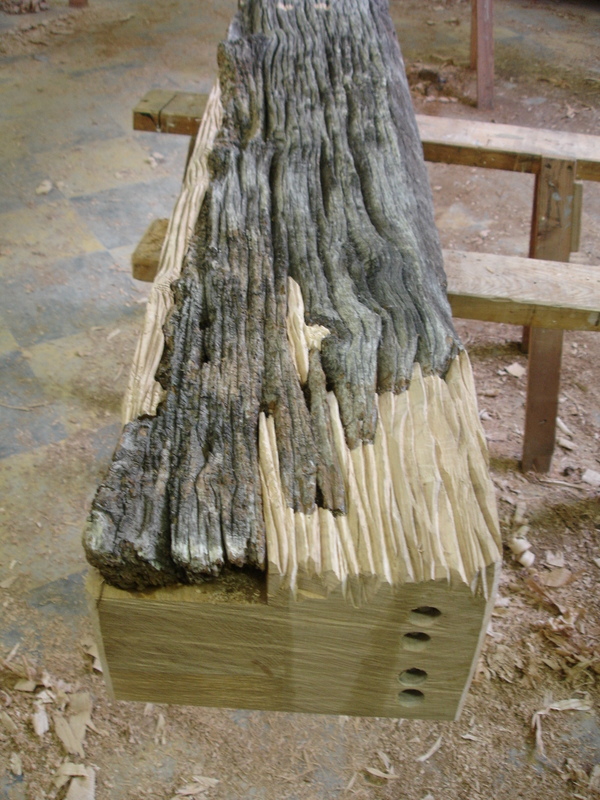

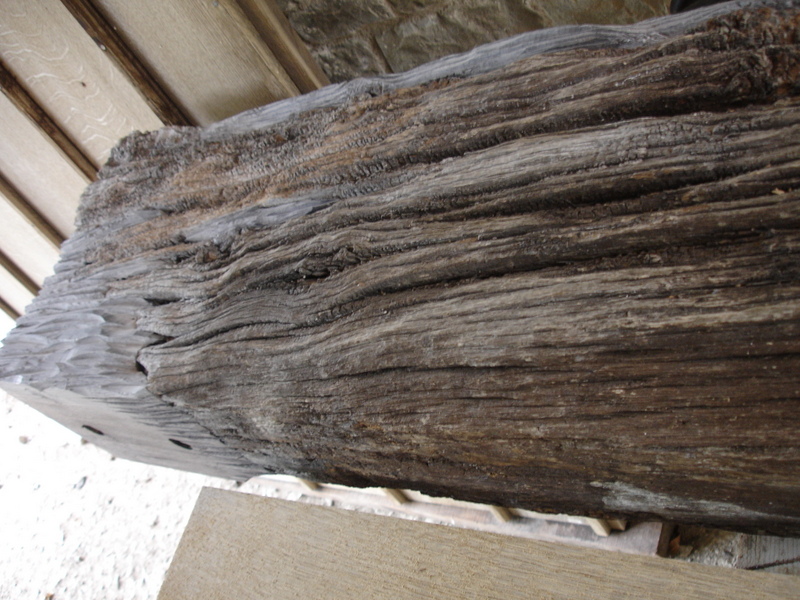

With the old wood being so deeply furrowed we decided to blend in the new work by carving and staining it to match which was very successful, indeed the entire transept roof, gable and doors were all expertly conserved and the internal steel supports could be finally removed.







11-st Catherine's Barn Lintel 16-10-2009 09-58-38







13-st Catherines Court Barn lintel 21-10-2009 15-23-35
